TCB703 Combination rod ends spherical plain bearings

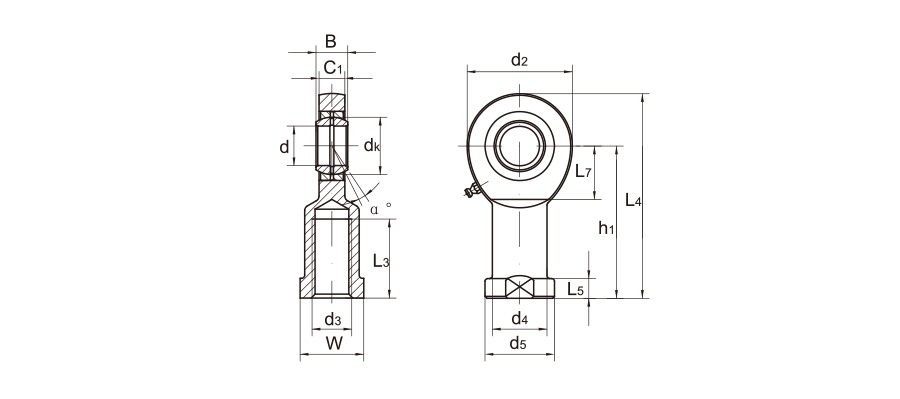

Combination Rod Ends With Female Thread
Bearing with a stretching rod, stretching rod with rigth or left-hand female thread.
It is made up of a spherical plain radial bearing of type GE???E or GE???ES and rod body.
To plate zinc on the surface of rod end, the housing of type SI???ES with a lubriction hole or grease cup.
Silding contact surfaces: steel/steel

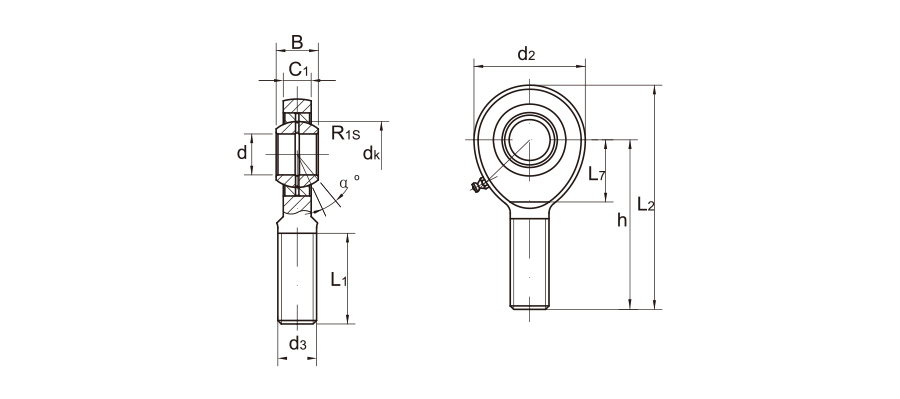

Combination Rod Ends With Male Thread
Bearing with a stretching rod, stretching rod with rigth or left-hand male thread.
It is made up of a spherical plain radial bearing of type GE???E or GE???ES and rod body.
To plate zinc on the surface of rod end, the housing of type SA???ES with a lubriction hole or grease cup.
Silding contact surfaces: steel/steel
| Combination rod ends SI???E SI???ES SA???E SA???ES |
Steel/ Steel |
Combination rod end with male or female thread is made up of a rod end and a radial spherical plain bearing of series GE???E or GE???ES, rod end of steel and zinc coated; Can be relubricated via a grease cup or a hole in the rod end. It has characteristics of large load capability, easy mounting and dismounting and mechanism simplification. |
TCB70 Classification
-
TCB 701
Outer ring with single split in axial direction
Lubrication grooves and holes in the outer and inner rings of type ES.
Outer ring of type-2rs with two seals...
-
TCB 702
Separable outer and inner rings.
Lubrication grooves and holes in the outer rings.
Both outer and inner rings are properly phosphorlylate-treated.
-
TCB 703
Bearing with a stretching rod, stretching rod with rigth or left-hand female thread.
It is made up of a spherical plain radial bearing of type GE???E or GE???ES and rod body.
To plate zinc on the surface of rod end, the housing of type SI???ES with a lubriction hole or grease cup.
