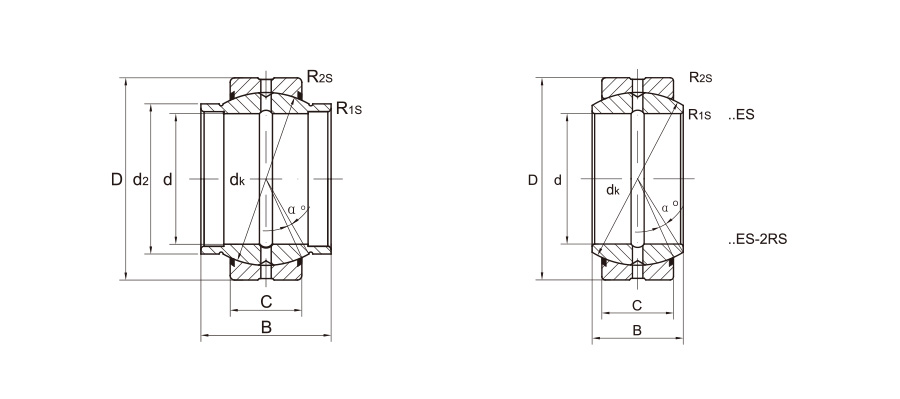

TCB701 Radial spherical plain bearing
Spherical Plain Bearings With Fittings Crack
Outer ring with single split in axial direction
Lubrication grooves and holes in the outer and inner rings of type ES.
Outer ring of type-2rs with two seals.
Both outer and inner are properly phosphorlylate-treated.
Sliding surfaces: steel/steel
| Spherical plain bearings with fitting crack GE???E | Steel/ Steel |
Outer ring of carbon chromium steel, fractured, hardened and phosphated, sliding surface treated with MoS2. It has characteristies of wear-resistance, wear-corrosion and self-aligning, suitable for heavy radial loads and any direction lower axial loads mechanism. |
| Spherical plain bearings with fitting crack GE???ES | Steel/ Steel |
Same as series GE???E, but can be relubricated via annular grooves and lubrication holes in both rings. |
| Spherical plain bearings with fitting crack GE???ES-2RS | Steel/ Steel |
Same as series GE???ES, but with two seals at both sides, special for bearing arrangement where separate seals do not provide adequate protection. |
TCB70 Classification
-
TCB 701
Outer ring with single split in axial direction
Lubrication grooves and holes in the outer and inner rings of type ES.
Outer ring of type-2rs with two seals...
-
TCB 702
Separable outer and inner rings.
Lubrication grooves and holes in the outer rings.
Both outer and inner rings are properly phosphorlylate-treated.
-
TCB 703
Bearing with a stretching rod, stretching rod with rigth or left-hand female thread.
It is made up of a spherical plain radial bearing of type GE???E or GE???ES and rod body.
To plate zinc on the surface of rod end, the housing of type SI???ES with a lubriction hole or grease cup.
