TCB702 Angular contact spherical plain bearings
Angular Contact Spherical Plain Bearings
Separable outer and inner rings.
Lubrication grooves and holes in the outer rings.
Both outer and inner rings are properly phosphorlylate-treated.
Sliding surfaces: steel/steel

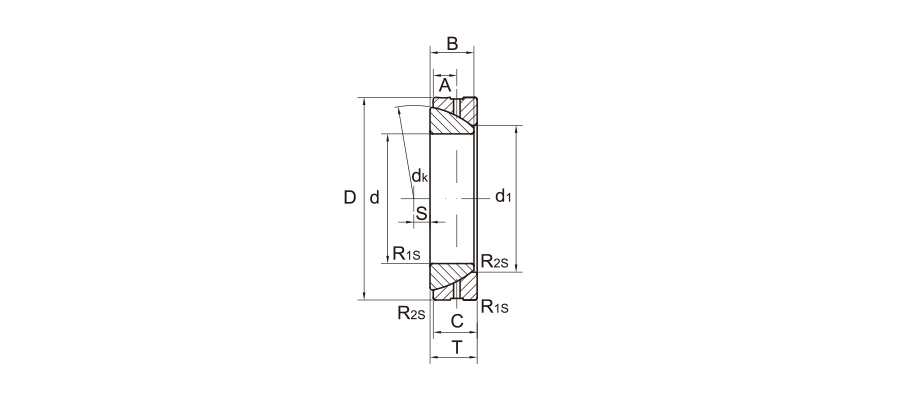

| Angular contact spherical plain bearings GAC???S | Steel/ Steel |
Bearing rings of carbon chromium steel, hardened and phosphated, sliding surface treated with MoS2.It has characteristics of wear-resistance, wear-corrosion and self-aligning, suitable for radial loads and single direction axial loads mechanism. |
TCB70 Classification
-
TCB 701
Outer ring with single split in axial direction
Lubrication grooves and holes in the outer and inner rings of type ES.
Outer ring of type-2rs with two seals...
-
TCB 702
Separable outer and inner rings.
Lubrication grooves and holes in the outer rings.
Both outer and inner rings are properly phosphorlylate-treated.
-
TCB 703
Bearing with a stretching rod, stretching rod with rigth or left-hand female thread.
It is made up of a spherical plain radial bearing of type GE???E or GE???ES and rod body.
To plate zinc on the surface of rod end, the housing of type SI???ES with a lubriction hole or grease cup.
